In the PCBA manufacturing environment, we have spend much time on improving PCBA manufacturing capabilities and PCBA manufacturing multilayer. Now,we are a professional smt PCBA manufacturing China, and we also provide PCBA manufacturing service, welcome to contact us!
Hayner PCB's LED Lighting Aluminium PCB Assembly is a premium product manufactured by a reputable manufacturer and supplier in China. This advanced PCB assembly is specifically designed for LED lighting applications, leveraging the exceptional heat dissipation properties of aluminium to enhance the performance and lifespan of LED lights. Hayner PCB, as a leading manufacturer, employs cutting-edge technology and rigorous quality control measures to ensure that every Aluminium PCB Assembly meets the highest standards of quality and reliability. The result is a product that not only delivers superior lighting performance but also ensures energy efficiency and durability. As a trusted supplier, Hayner PCB offers customized solutions to meet the unique needs of its customers, ensuring seamless integration with various LED lighting systems. With its commitment to excellence and a focus on delivering the best possible products, Hayner PCB is the preferred choice for businesses seeking top-quality LED Lighting Aluminium PCB Assemblies from China.

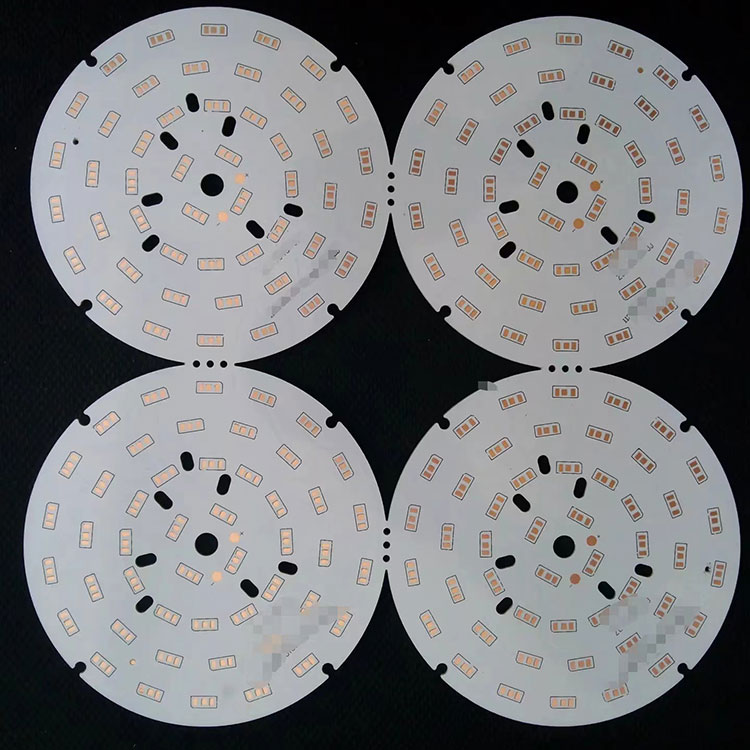

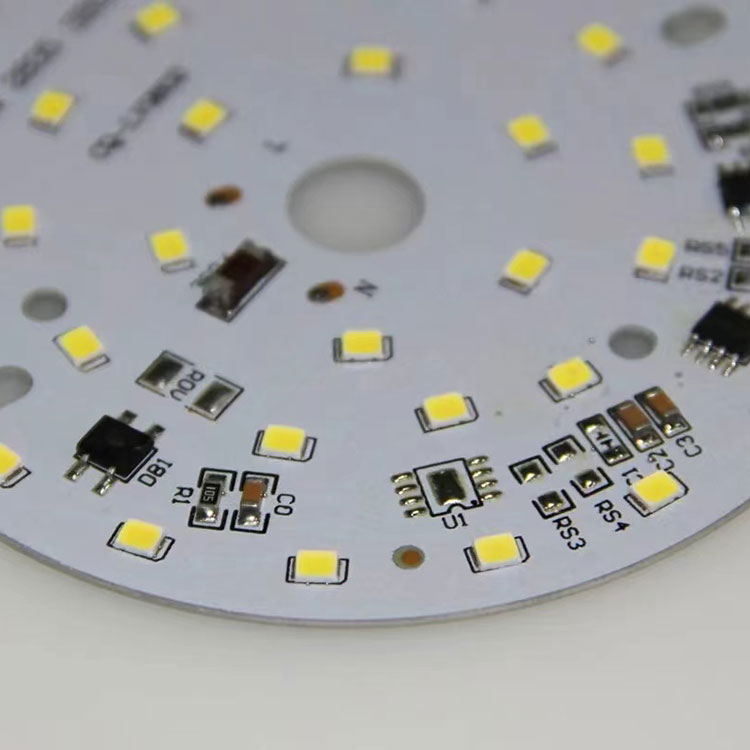

PCB Assembly Name:LED Lighting Aluminium PCB Assembly
Applications: LED
One-Stop Service:PCB design, components procurement,
PCB manufacturing, assembly and testing allin to our own factory plant.
Hayner PCB LED Lighting Aluminium PCB Assembly is a fancy product offered by a leading manufacturer and supplier in China. Known for its high quality and low price, this LED lighting solution is perfect for various applications. Request a quotation now to experience the best value in the market.
|
Specification |
Capability |
|
PCB Base Material |
FR-4/ High TG FR-4 /Aluminum /CEM-1/Rogers/Arlon/Taconic/Teflon |
|
Layers |
1-28 layer |
|
Surface finish |
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |
|
Copper Thickness |
1-6oz |
|
Board Thickness |
0.2-7.0mm |
|
Min. Hole Size |
Mechanical hole: 0.15mm Laser hole: 0.1mm |
|
Min.Line Width |
4mil |
|
Min.Line Spacing |
4mil |
|
Minimum Annular ring |
4mil |
|
Min. Solder Mask Bridge |
0.08mm |
|
Controlled Impedance |
+/-5% |
|
Aspect ratio |
15:1 |
|
Plugging Vias Capability |
0.2-0.8mm |
|
Solder mask |
White |
|
Silkscreen |
Black,White |
|
Outline Profile |
Rount /V-art/Bridge/Stamp hole |
|
PCB Standard |
IPC-II Standard |
|
Warp & Twist |
0.75% |
|
Certificate |
ISO9001, IATF 16949,RoHS,UL |
|
PCBA Quality Control |
X-ray, AOI Test, Function Test (100% Test) |
|
Delivery |
PCB 3-7 Days, |
|
PCBA 2-3 weeks |
Seven SMT production lines --10 millions points/day
Four THT production lines--- 0.50million points /day
Three Final assembly lines ---- 15,000pcs/day
One Aging room ---- 2,000PCS/day
One Spraying lines
